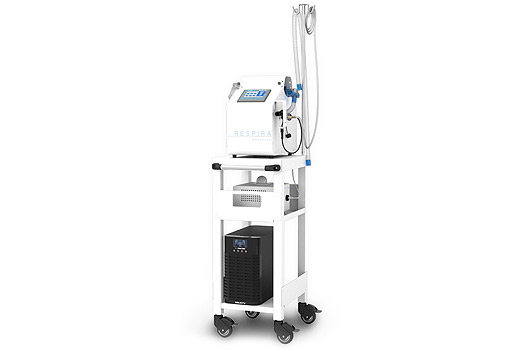

Respira Life OX
An intensive care device that allows monitoring and control of key ventilation parameters. An ideal device to cover shor tage of conventional automated Medical ventilators on emergency situations, while ensuring remote patient monitoring.
R E S P I R A has been designed to work intensively, and without interruption. It has different ventilation modes, providing great versatility to treat patients in dif ferent invasive ventilation phases.
- R E S P I R A is able to emulate human respiration through mechanical compression of a resuscitation bag using a piston with an electric linear guide adapting to the needs of the patient.
- The device is prepared to be managed in person and remotely.
- Capable of controlling 16 connected R E S P I R A devices from a single PC, and monitoring and controlling them in real time.

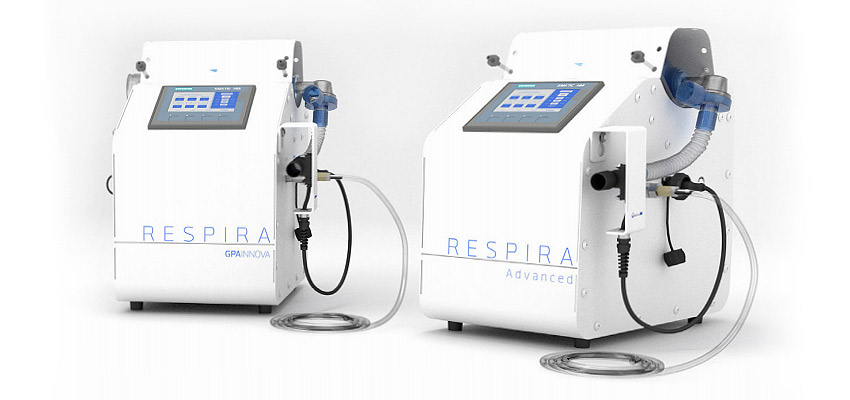

R E S P I R A Basic
Basic version designed to treat patients in Deep sedation. Automates and increases the precision of the manual intervention performed by a physician with a resuscitation bag, incorporating readings of key parameters for breathing. It is a manual control device which displays alerts and readings in real time.
R E S P I R A Advanced
This model allows manual control and additionally automated control. The alerts and real-time readings are processed modifying the ventilation parameters required by the setup made by the physician according to the needs of the patient. It allows weaning mode by detecting the patient’s inspiration pressure and incorporating trigger sensitivity adjustments.
SIEMENS PLC control with a simple and intuitive interface for maximum safety
Parameter display in real time
- Insufflation volume
- Inspiration and expiration pressure (maximum, minimum and plateau)
- Oxygen supply via FiO 2 sensor with independent display (optional)
Graphs display in real time
- Insufflation flow
- Inspiration and expiration pressure
- Insufflation volume
Safety Alarm System
Built-in alert system shown in device screen prevents incidence or deviation on respirator parameters. It also incorporates a acoustic alarm system.
- Maximum volume (adjustable)
- Minimum volume (adjustable)
- Maximum (PPI) pressure (adjustable)
- Minimum (PEEP) pressure (adjustable)
- Apnea (*) Available with the Advanced model
- Actuator error
- Breathing circuit disconnection
- Voltage drop
Volume and pressure sensor on each side for more comfort
This device collects air flow, pressure and tidal volume from sensors to control the amounts delivered to patient, safety system and it does not require installation.
Ventilation parameters
Tidal volume control
This device adjusts the volume of air supplied to the patient (tidal volume) by controlling the actuator stroke which compress device.
Ratio I:E
R E S P I R A allows to perfectly assist human breathing adjusting the times of expiration to get a desired ratio of inspiration/expiration. Expiration can be adjusted from 1 to 3 with steps of 0.5.
Frequency
The system controls breath frequency between 10 to 30 rpm.
Controllable pressure by PEEP valve
Trigger sensitivity
(-1cm, -2cm, -3cm H2O) vs PEEP
Contact us and we will explain all the details and differences between the two models.
